Automatic Spring Units Assembler Machine

Model: EAM-300
Place of Origin: Zhejiang,China (Mainland)
Brand Name: ESUN
Productivity: 28000 springs/per 8hours
Spring type: bonnell
Spring end ring diameter range: 67-91mm
Spring wire diameter: 1.9-2.5mm
Spring height: 100-180mm(<80mm need to be customized)
Maximum weight of wire reel: 200kgs
Controlls: PLC control and operator's panel
Helical wire diameter: 1.3-1.4mm
Max spring unit width: 2050mm
Hydraulic system power: 2.0kw

 Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOB,CFR,CIFProduction Capacity:15-20pcs/month
Payment Terms:Paypal, L/C, D/P, D/A, T/T, WU, Money GramPacking:wood carton
Min. Order:1 Piece/PiecesDelivery Date:7-40days
Means of Transport:Ocean, Land

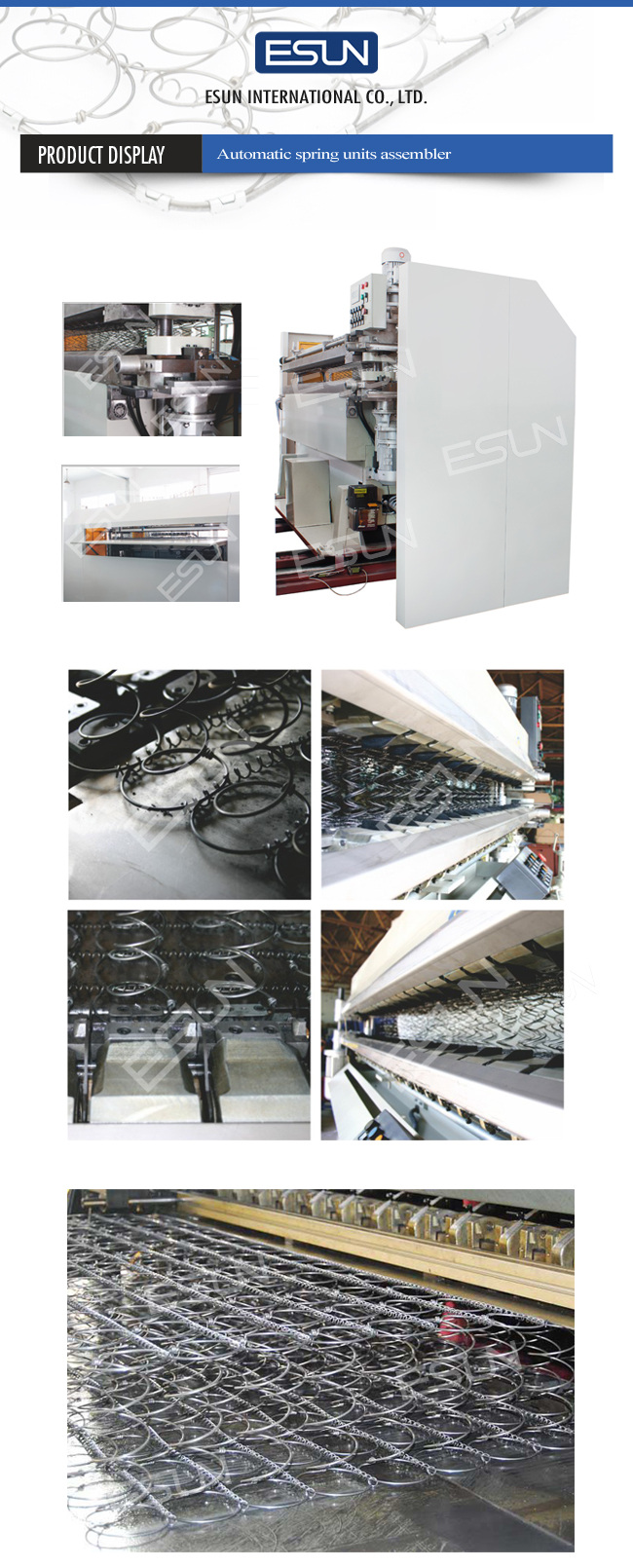

EAM-300  Automatic Spring Units Assembler



EAM-300 drives to work by hydraulic system. ESUN patented design monolithic clamping mechanism, with high precision and adjust jaw position easily and facility. You can change the whole set of jaw to produce different specification spring units.



EAM-300 assembly machine is equipped with one set of jaws, which can be chosen from below indicated tables. Below tables shows the jaw specification, jaw quantities, and the connection between spring diameter and shortest distance spring be positioned. From below table, you can add the pitch of each spring to add the spring unit width. For example:



One 150cmx200cm mattress, spring unit size is 147cm x 195cm, can be made by different specification spring and change different specification jaw through NO.1 form of below table.



No. of jaws21201918171615141312111098
X.Spring dia:85-90/1979188017811682158314841385128611871088989890791
L.Spring dia:76-85/1850176016701580149014001310122011301040950860770
M.Spring dia:70-76/183117381645155214591366127311801087994901808715
S.Spring dia:65-701855176516751585149514051315122511351045955865775685





Technical data at a glance

Max production

Max:28000 spring/per 8 hours)

Spring types

 Bonnell

Spring diameter

67-91mm

steel wire diameter

1.9-2.5mm

spring height

100-180mm(<80mm needs to be customized

Helix wire diameter

1.3-1.4mm

Max spring unit width

2050mm

Max number of Jaws

S:23

M:22

L:22

X:22

hydraulic system power

2.0kw

Motor power of helix makers

2x1.1kw (with invert)

Controls

PLC control and operator's panel

Max weight spiral wire reel

200kgs
