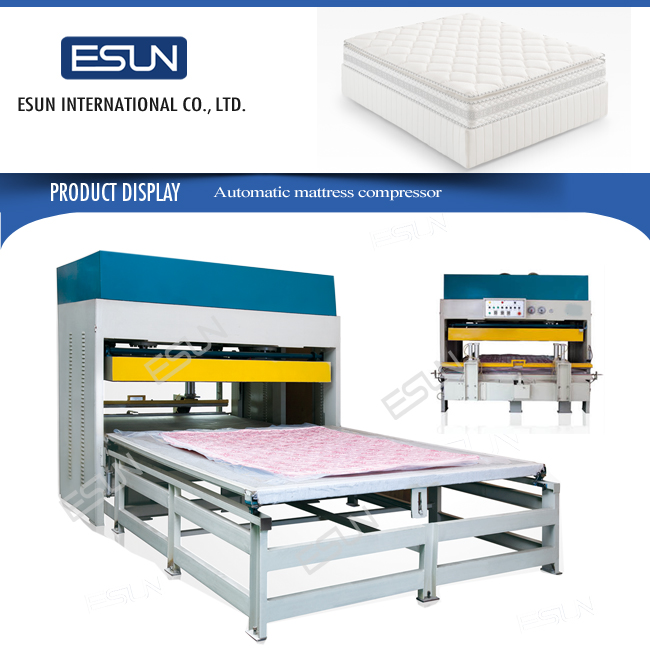

Automatic Mattress Compression Machine

Model: EF-60
Place of Origin: Zhejiang,China (Mainland)
Brand Name: ESUN
Max Mattress Size: 2200x2000mm
Max Mattress Height: 430mm
Machine size: 11000x10300x3450mm
Machine weight: 16000kg
Suitable Film Material: PE, PVC Film
Total Power: 32kw
Max Working Pressure: 60T

 Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOB,CFR,CIFProduction Capacity:15-20pcs/month
Payment Terms:L/C, D/P, T/TPacking:wood carton
Min. Order:1 Piece/PiecesDelivery Date:7-40days
Means of Transport:Ocean, Land

EF-60 Full Automatic Mattress Compress and Roll Packing Production Line

EF-60 is development upgrade base on EF-50, except with all function of EF-50,the final roll compressor diameter is adjustable, very flexible production. EF-60 is very suitable to mattress manufacturer which in high level quality, large production capacity and mattress model is multifarious.

Technical Data at a glance

ModelEF-50SEF-50 EF-60
Degree of AutomationAutomaticFull Automatic.
Continuous
Full Automatic,
Continuous
Max Mattress Size2200x2000mm2200x2000mm 2200x2000mm
Max Mattress Height430mm  430mm430mm
Suitable Film MaterialPE,PVC film PE,PVC filmPE,PVC film
Max Working Pressure60Ton 60Ton 60Ton
Max Production SpeedMax 35S/mattress
(folder and angle turn
not available)
Max 45S/mattressMax 45S/mattress
Package Diameter
Adjustable Range

Fixed

Fixed Adjustable
Package Diameter
Adjustable Range

250mm, 270mm,
320mm, 340mm,
420mm
Or Customized

250mm, 270mm,
320mm, 340mm,
420mm
Or Customized
250-420mm
300-500mm
420-600mm
Angle Turn System

Not Included

Included Included
Folder System

Not Included

Included Included
Control TypePLC(Delta and Chinese)
HMI(Delta and Chinese)
Inverter( Toshiba )
PLC(Delta)
HMI(Delta)
Inverter( Toshiba )
PLC(Delta)
HMI(Delta)
Inverter( Toshiba )
Total Power22.5kw  26kw  32kw
Machine Size4500x2000x1800mm11000x10300x3450mm11000x10300x3450mm
Machine Weight12500kg14500kg 16000kg



The reason why choose us?

1:One-stop service: In addition to products, ESUN provides complete solutions from pre-sale consulting to after-sale service

2:Product sourcing: Cooperating with 100 suppliers, our 5 plants can manufacture 108 types of machines and 28 types of accessories.

3:Strong quality control system:Raw material control/process control/component quality control/finished product quality inspection/mass production spot check/inspection company check

4:Global business: With 20years of experience, our products are sold to 100 countries and regions and highly recognized by customers.

5:Patent owner: To after clients high performance solutions, we keep investing on new products development and acquired 16 patents.

Looking for partners

We are always interested to hear from potential partners and we are keen to develop our business in the world. We are especially eager to hear from interested partners with experience and a network in the mattress machinery and accessory.




Category: Mattress Packing Machine
