Automatic Assembly Spring Units

Model: EAM-120
Place of Origin: Zhejiang,China (Mainland)
Brand Name: ESUN
Function: assemble spring
Export Area: all over the world
Productivity: up to 28000springs/8h
spring type: bonnell
spring end ring diameter range: 67-90mm
spring wire diameter range: 1.9-2.4mm
spring height: 90-178mm
max spring unit width: 2000mm
voltage: 380V 50HZ

 Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOB,CFR,CIFProduction Capacity:15-20pcs/month
Payment Terms:L/C, D/P, T/T, D/APacking:wood carton
Min. Order:1 Piece/PiecesDelivery Date:7-40days
Means of Transport:Land, Ocean

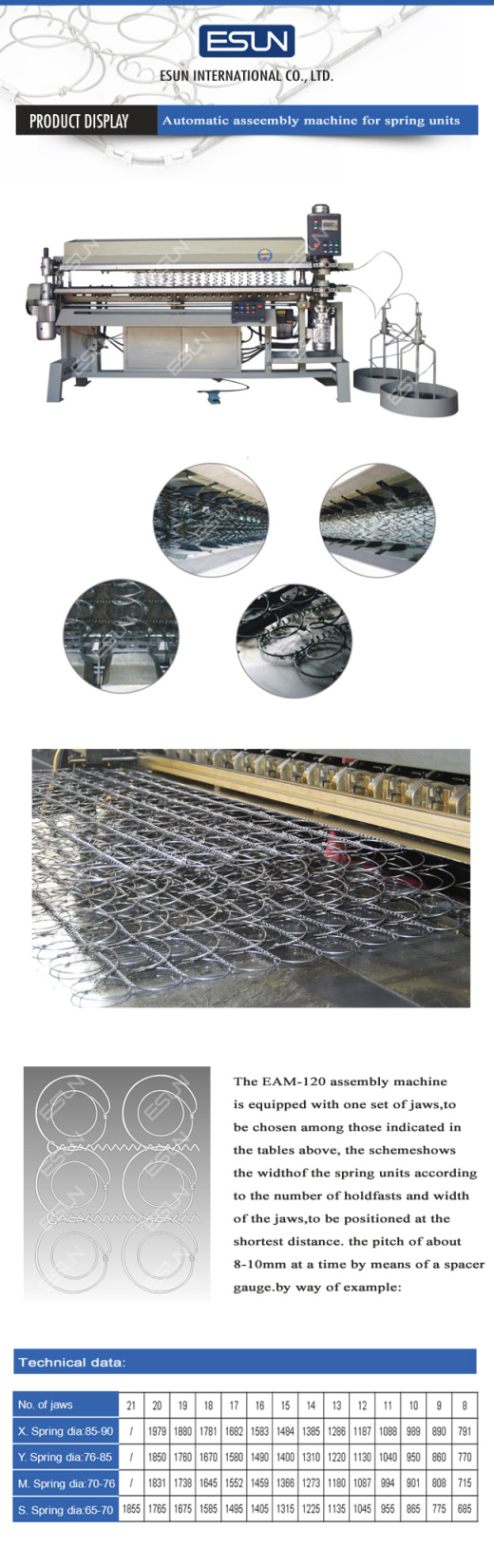

EAM-120 Automatic Assembler Spring Units

Feature
1.It can account thespring rows automatically.
2.It can pull out the inner-spring unitsautomatically after finishing the enactment of the rows.
3.The spring rowscan be enacted by the computer.

Economy
The machine operateswithout compressed air. Maintenance and spare parts wear is kept to a minimum.Production speed can be adapted to the quality of wire.

Highflexibility

The EAM-120 assembly machine produces various types of spring units using springs with different diameter, wire thickness and height. The number of lines can be varied without moving the unused holdfasts.

Quality
The helix closing rings on both ends are very near to the springs. Exrremely precise, electronic controlled helix stop guarantees a perfect closing.

Control Panel

Control units are located on two panels, one of them can be oriented ,to help an easy machine set-up.

Helix Control

An innovative helix control device limits adjustment times in case of a collision. The system's high sensibility ensures an immediate stop without any deformation of the helix. Even the wire can not pull out due to wire tied or enwind, the device can immediate stop the mechine also.

15 lines x 24 rows with spring with an 90 mm external diameter and using 85-90 mm jaws
15 lines x 26 rows with spring with an 83.5 mm external diameter and using 76-85 mm jaws
16 lines x 32 rows with spring with an 69 mm external diameter and using 65-70 mm jaws

Technical data at aglance

No. of   jaws

21

20

19

18

17

16

15

14

13

12

11

10

9

8

X. Spring   dia:85-90

/

1979

1880

1781

1682

1583

1484

1385

1286

1187

1088

989

890

791

L. Spring   dia:76-85

/

1850

1760

1670

1580

1490

1400

1310

1220

1130

1040

950

860

770

M. Spring   dia:70-76

/

1831

1738

1645

1552

1459

1366

1273

1180

1087

994

901

808

715

S. Spring   dia:65-70

1855

1765

1675

1585

1495

1405

1315

1225

1135

1045

955

865

775

685


Technical data at aglance


Model

EAM-120

Output(springs/8h)

Up to 28000

Coil type

Bonnell

Coil outside diameter(mm)   (Can be customized)

67- 90 (can be   customized)

Steel wire diameter(mm)

1.9 - 2.4 (can   be customized)

Spring height(mm)

90-178 (others   need to be customized)

Helical wire diameter(mm)

1.3-1.4

Max spring unit width(mm)

2000

Max number of jaws

21(S)  20(M) 20(L)    20(X)

Control system

PLC control and   operator's panel

Max weight of wire on   feeder(kgs)

200

Total Power(kw)

3.3

Power requirements

380v 3 phases 50Hz

Machine Weight(Kgs)(only for   ref.)

935

Machine Size(LxWxH mm)(only   for ref.)

3200 x 1000 x 2100

Standard packing(only for   ref.)

Wooden pallets with plastic   films
